Design pad foundations

Did you know that you can use Consteel to design pad foundations?

A pad foundation, also known as an isolated or spread footing, is a type of shallow foundation commonly used in industrial buildings to support individual structural elements such as steel or reinforced concrete columns. It transfers the concentrated loads from these elements to the bearing soil layer, distributing them over a larger area so that it can safely carry the load.

In industrial settings, pad foundations are designed to accommodate higher loads and, where necessary, additional effects from equipment or machinery, while keeping settlement within acceptable limits to ensure the structure’s stability.

In Consteel, a pad foundation is defined through the Spread footing function as a specialized compound object used for modeling shallow foundations of individual columns.

It consists of a bar member, a support positioned at the geometric center of the foundation base, and an associated joint model that defines geometry, material, and eccentricities. The reference line of the footing is always aligned with the global Z axis, and the element is typically placed at column nodes, where it can inherit eccentricities from connected members, enabling an accurate representation of load transfer to the bearing soil layer.

For the design of pad foundations, before starting, don’t forget to load the necessary load combinations into your model and perform the analysis for them. For the foundation design, at least one geotechnical ULS combination is required to verify soil bearing capacity and to check against sliding and overturning.

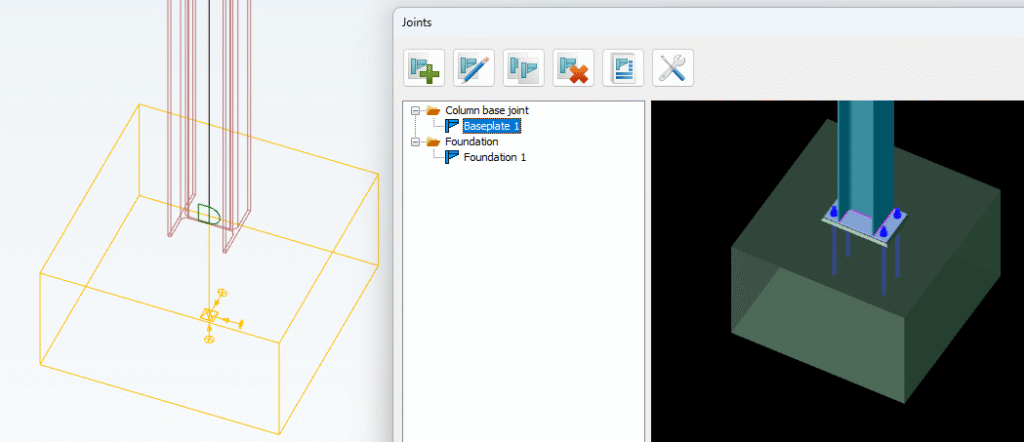

In the Joint module, designing a spread footing is simple and fully integrated. Once the foundation joint is created and placed at the column node, you can define its geometry, material, and reinforcement directly in the module.

More detailed instructions and options for defining dimensions, materials, and placement can be found in the Consteel manual.

Design loads can be imported automatically from the Consteel model, taking into account column eccentricities and forces from connected members. The module performs all necessary checks, including soil bearing, sliding, overturning, bending of the reinforcement, settlement, and punching shear.

Download the example model and try it!
